The QK25 Drum Filter is a high-quality, fully automatic mechanical filtration system designed to provide exceptional water clarity and efficient waste removal for koi ponds and garden ponds.
Manufactured by DVS and supplied under the Queni Koi brand, the QK25 combines established DVS filtration technology with robust construction and dependable performance, offering an excellent solution for pond owners looking to reduce maintenance while improving water quality.
Featuring a patented 120-micron woven stainless steel drum screen, the QK25 effectively removes suspended waste, debris and fine particles from pond water before they reach the biological filtration system. This helps reduce organic waste accumulation and improves overall filtration efficiency.
Constructed from precision CNC-machined polypropylene, the QK25 is designed for strength, durability and continuous operation.
The fully automatic cleaning system monitors water levels and activates cleaning cycles when required, flushing collected waste directly to drain. Adjustable cleaning duration and water level settings allow the system to be configured to individual pond installations.
High-quality, replaceable cleaning nozzles and a removable spray bar make routine maintenance straightforward, particularly in areas with hard water.
The QK25 is supplied in gravity-fed configuration as standard, with a pump-fed option available upon request at no additional cost, subject to lead time.
Technical Specifications
Specification Details Manufacturer DVS Brand Queni Koi Model QK25 Drum Filter Maximum Flow – Gravity Fed 25,000 LPH Maximum Flow – Pump Fed 17,500 LPH Inlets 2 × 4" Outlets 2 × 4" Waste Outlet 1 × 4" Cleaning Pump Connection 1 × 1.5" Drum Screen 120 Micron Internal Bypass 2 × 4" Bypass Plugs Construction CNC-Machined Polypropylene Cleaning System Fully Automatic Cleaning Activation Adjustable Float Switch Cleaning Duration Adjustable Pump Protection Dry Pump Cut-Off Cleaning Pump High-Pressure Cleaning Pump Installation Gravity Fed / Pump Fed Gravity Installation Height 16cm from filter top to water level Key Features
Fully automatic mechanical filtration for koi ponds and garden ponds.
Manufactured by DVS and supplied under the Queni Koi brand.
Patented 120-micron woven stainless steel drum screen.
Maximum flow rate of 25,000 litres per hour in gravity-fed configuration.
Durable CNC-machined polypropylene construction.
Automatic self-cleaning with adjustable cleaning duration.
Height-adjustable water level float switch.
High-quality, replaceable cleaning nozzles.
Removable spray bar for convenient maintenance.
Integrated bypass facility and dry-run pump protection.
Gravity-fed installation as standard, with pump-fed configuration available upon request.
What's Included
QK25 Drum Filter.
Control panel with manual cleaning function.
High-pressure cleaning pump.
Drum filter lid.
2 × 4" internal bypass plugs.
Installation Information

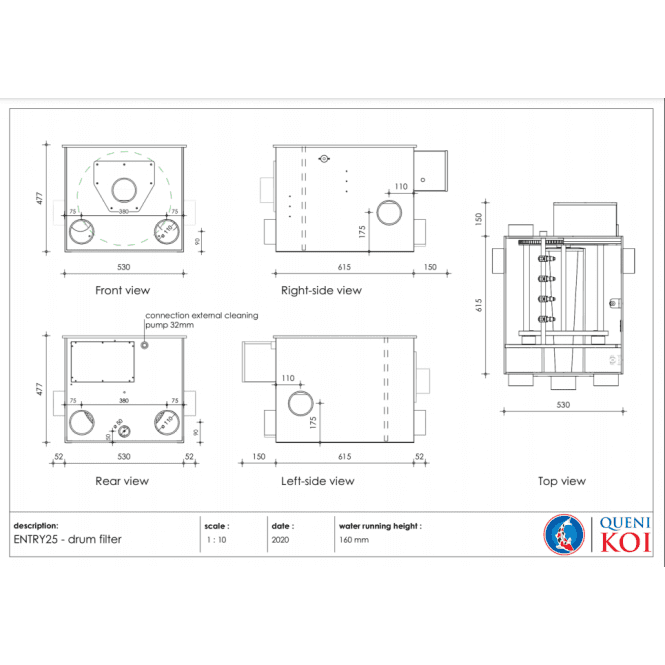

The QK25 is supplied in gravity-fed configuration as standard. For gravity-fed installations, the required installation height is 16cm between the top of the filter and the pond water level.
Pump-fed configuration is available upon request at no additional cost, although additional lead time may apply.
The QK25 provides mechanical filtration and should be installed alongside a suitable biological filtration system, such as a moving bed bio chamber or shower filter.
Warranty & Support
The QK25 Drum Filter is supplied with a 2-year warranty on all parts, including the drum screen, subject to fair usage and warranty conditions.
UK-based customer support and replacement parts are available through Queni Koi Southern.
Delivery Information
Due to the size and weight of this product, delivery is arranged by pallet.
Please contact us before ordering to confirm delivery arrangements and charges. Someone must be available at the delivery address to accept the pallet upon arrival.
If the product is not currently in stock, additional manufacturing or delivery lead times may apply. Please contact us for current availability.
-
