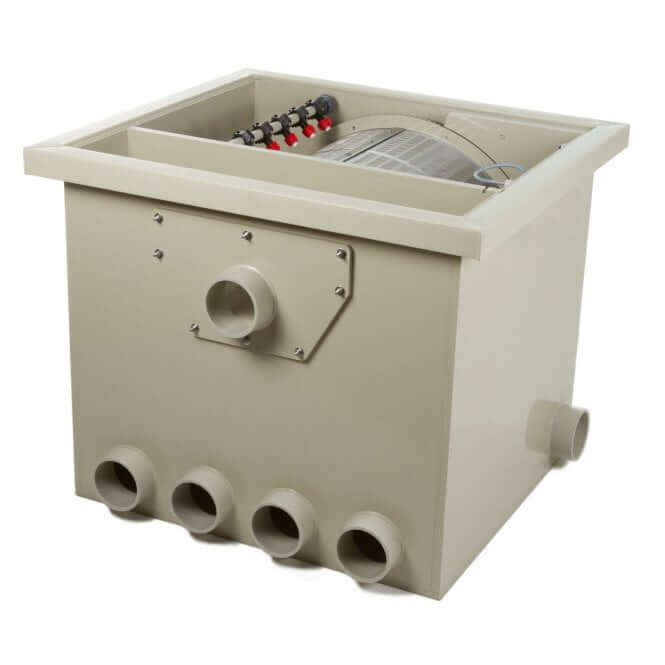

The QK50 Drum Filter is a high-performance, fully automatic mechanical filtration system designed to deliver exceptional water clarity and efficient waste removal for larger koi ponds and garden ponds.
Manufactured by DVS and supplied under the Queni Koi brand, the QK50 combines the proven engineering and reliability of the DVS Pro filtration range with robust construction and advanced automatic cleaning technology.
Featuring a patented 70-micron woven stainless steel drum screen, the QK50 effectively removes fine suspended waste, debris and organic particles from pond water before they reach the biological filtration system. The fine mesh provides excellent mechanical filtration, making it particularly suitable for larger or heavily stocked koi ponds where effective waste removal is essential.
Constructed from precision CNC-machined polypropylene with stainless steel components, the QK50 is designed for strength, durability and continuous operation.
The fully automatic cleaning system uses height-adjustable water level sensor probes to monitor the filter and activate cleaning cycles when required. An integrated low water level safety cut-out helps protect connected pond pumps from running dry, while adjustable cleaning duration allows the system to be configured to individual installations.
High-quality, replaceable cleaning nozzles and a removable spray bar make routine maintenance straightforward, particularly in areas with hard water.
The QK50 is supplied in gravity-fed configuration as standard, with a pump-fed option available upon request at no additional cost, subject to lead time.
A high-pressure cleaning pump is included to provide effective cleaning of the drum screen, helping maintain consistent filtration performance.
Technical Specifications
Specification Details Manufacturer DVS Brand Queni Koi Model QK50 Drum Filter Maximum Flow – Gravity Fed 50,000 LPH Maximum Flow – Pump Fed 35,000 LPH Inlets 4 × 4" Outlets 4 × 4" Waste Outlet 1 × 4" Cleaning Pump Connection 1 × 1.5" Drum Screen 70 Micron Internal Bypass 2 × 4" Bypass Plugs Construction CNC-Machined Polypropylene Cleaning System Fully Automatic Cleaning Activation Dual Water Level Probes Cleaning Duration Adjustable Pump Protection Low Water Level Safety Cut-Out Cleaning Pump High-Pressure Pump (4.2 Bar) Installation Gravity Fed / Pump Fed Gravity Installation Height 17cm from filter top to water level Key Features
Manufactured by DVS and supplied under the Queni Koi brand.
Fully automatic mechanical filtration for koi ponds and garden ponds.
Patented 70-micron woven stainless steel drum screen for fine waste removal.
Maximum flow rate of 50,000 litres per hour in gravity-fed configuration.
Precision CNC-machined polypropylene construction with stainless steel components.
Automatic self-cleaning with adjustable cleaning duration.
Height-adjustable dual water level sensor probes.
Low water level safety cut-out to protect connected pond pumps.
High-quality, replaceable cleaning nozzles.
Removable spray bar for convenient maintenance.
Integrated bypass facility.
High-pressure cleaning pump included.
Gravity-fed installation as standard, with pump-fed configuration available upon request.
What's Included
QK50 Drum Filter.
Control panel with manual cleaning function and electrical connections for the drum motor, cleaning pump and main pond pump.
High-pressure cleaning pump.
Drum filter lid.
2 × 4" internal bypass plugs.
Installation Information
The QK50 is supplied in gravity-fed configuration as standard. For gravity-fed installations, the required installation height is 17cm between the top of the filter and the pond water level.
Pump-fed configuration is available upon request at no additional cost, although additional lead time may apply.
The QK50 provides mechanical filtration and should be installed alongside a suitable biological filtration system, such as a moving bed bio chamber or shower filter.
Actual flow rates will depend on the installation, pipework and pump selection.
Warranty & Support
The QK50 Drum Filter is supplied with a 2-year warranty on all parts, including the drum screen, subject to fair usage and warranty conditions.
UK-based customer support and replacement parts are available through Queni Koi Southern.
Delivery Information
Due to the size and weight of this product, delivery is arranged by pallet.
Please contact us before ordering to confirm delivery arrangements and charges. Someone must be available at the delivery address to accept the pallet upon arrival.
If the product is not currently in stock, additional manufacturing or delivery lead times may apply. Please contact us for current availability.
-
